Mobile Bagging

The core product of Portpack UK Limited is the Containerised Mobile Bagging unit, which can be supplied in a number of different configurations.

The core product of Portpack UK Limited is the Containerised Mobile Bagging unit, which can be supplied in a number of different configurations.

The Mobile Bagging unit consists of two ISO specially designed and Lloyd’s approved 20’ containers. These containers are quickly assembled on site for immediate use and house the following equipment.

Upper Container comprising of:- Integral feed hopper to feed product directly into the weighing machines, air cooled compressor with two stage pump to provide compressed air to the total system, and main control panel with PLC systems.

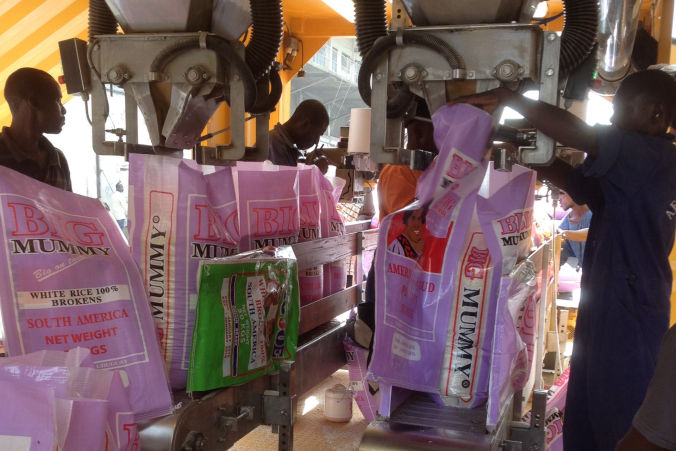

Lower Container comprising of:- The discharge chute which feeds the weighed product from the weigher housed in the top container, into the bag held by the bag gripper which then releases the filled bag onto the stitching/sealing conveyor. This is then fed through the stitching/sealing machines and the stitched/sealed bags move along the conveyor to be fed onto the Inclined Truck Loading Conveyor to be stacked immediately onto the waiting trucks.

Portpack UK Limited

Model PP2000


The model PP2000 range has two bagging lines. The output of each line is 24 x 50Kg bags per minute per line = 72 m.t.p.h. x 2 = 144 m.t.p.h. per unit. The PP2000 machine has a bagging line feeding out of each end so that two trucks can be loaded at the same time.

The PP2000 has the following configuration. Electro Pneumatic Lever System. Standard machine is electro-pneumatic 5:1 ratio balance system with pro-weights and Siemens PLC control.

Portpack UK Limited

Model PP2000SE


Portpack have introduced a new version of the PP2000 which has re-configured the two stitching lines to feed out of the same end instead of the standard layout with the stitching lines feeding out of each end.

The operators applying the empty bags onto the bag grippers are in the same position as the standard layout, one stitching operator is in the normal position, with the other one between the conveyors. The version is especially useful when space is restricted on the quayside and two trucks can be loaded alongside each other rather than opposite ends.

Portpack UK Limited

Model PPEW2000

The PPEW2000 machine has a bagging line feeding out of each end so that two trucks can be loaded at the same time.

The PPEW2000 has the following configuration. Electronic Machines. Supplied with twin loadcell weighers and CSX microprocessor self optimising controllers. The controllers provide automatic self optimising control to ensure all weights are maintained to the set range.

Portpack UK Limited

Model PPEW2000SE

Portpack have introduced a new version of the PPEW2000 which has re-configured the two stitching lines to feed out of the same end instead of the standard layout with the stitching lines feeding out of each end.

The operators applying the empty bags onto the bag grippers are in the same position as the standard layout, one stitching operator is in the normal position, with the other one between the conveyors. The version is especially useful when space is restricted on the quayside and two trucks can be loaded alongside each other rather than opposite ends.

Portpack UK Limited

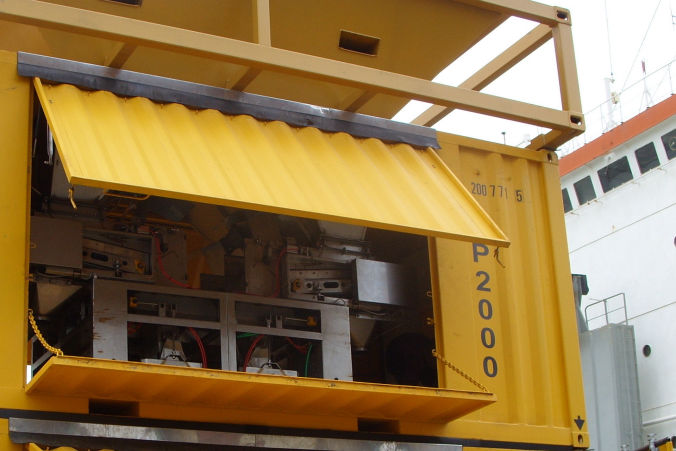

Model PPBF

Portpack UK Limited produce a variant of the standard machine for handling non-free flowing products, which could be powdery, flakey or cereals, salt, some fertilisers, meals and irregular shaped products. The Belt-Fed weighers which extract the products from the feed hopper above onto a two speed belt feeder which is then controlled by feed gates into the weighpan. This is a slower process than the gravity weighing by virtue of the extra control of the material.

There are electronic vibrators fitted to the inlet hoppers feeding the weighers and also pneumatic vibrators to each of the weighpans, that prevent any build-up and allow the product to flow more freely during the discharge operations.
