Conveyors

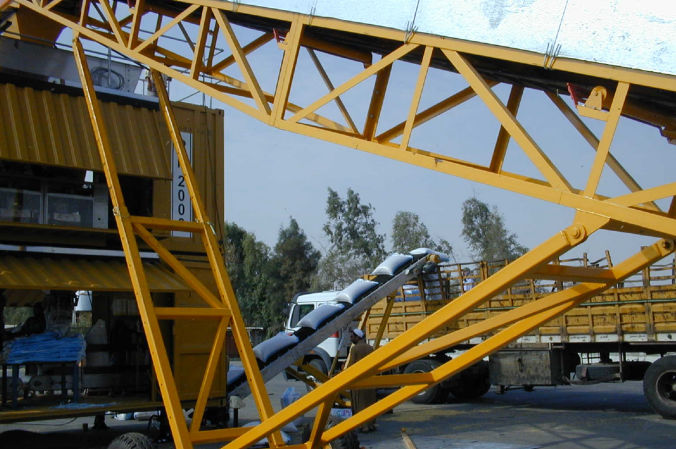

Portpack can provide inclined conveyor systems to feed the mobile bagging unit comprising of:-

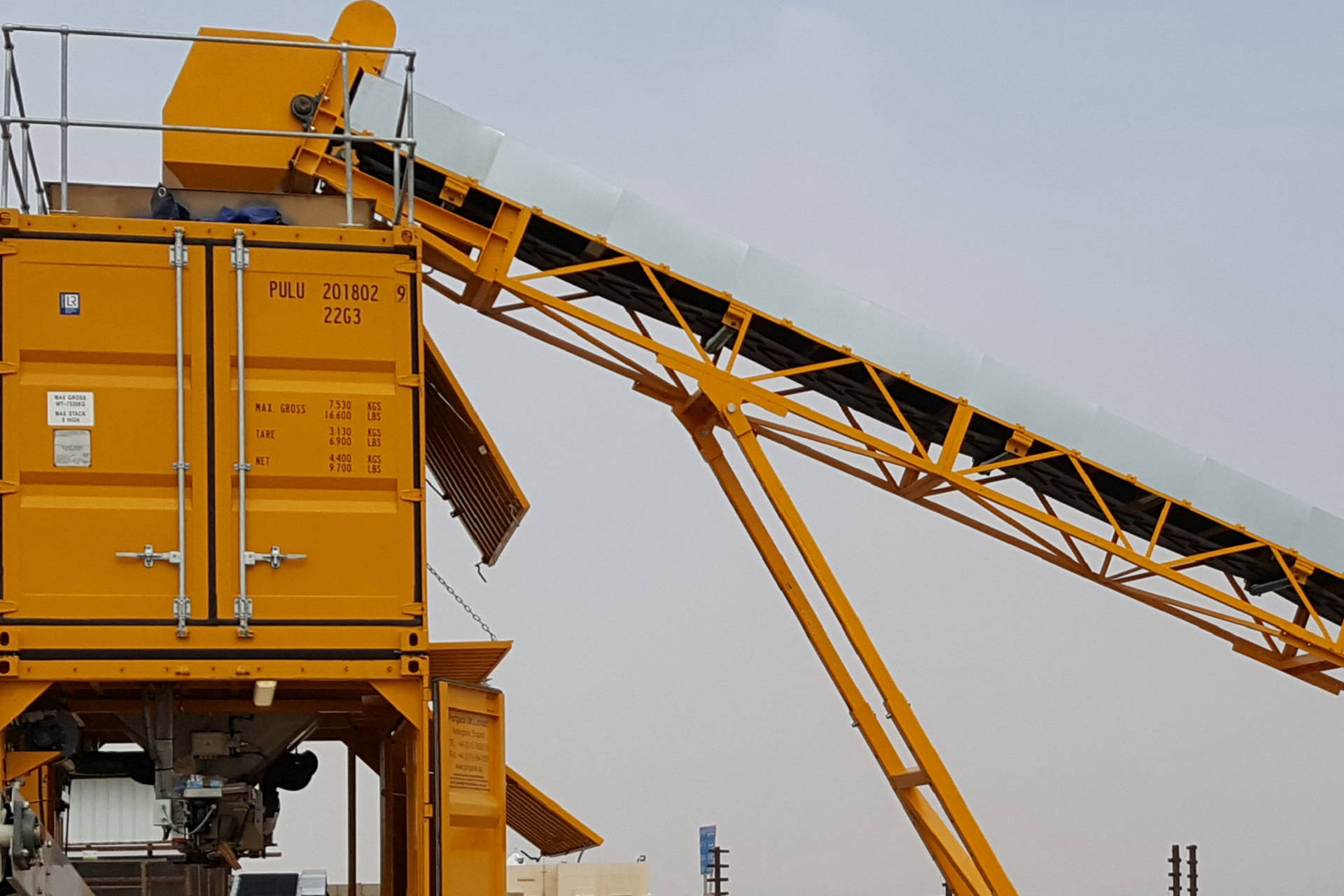

Inclined Mobile Troughed Belt Conveyor includes Frame, Conveying Belt, Driving Drum, Tail Drum, Cleaning Drum, Upper and Lower Idlers, Tension Device, Gathering Skirt, Rubber Seal, Discharge Chute, Dust Cover, Moving Mechanism and Electric System.

The Ground Feeding Hopper comprises Hopper Supports, Storage Hopper, Hopper Door and Moving Wheels with Tow Bar.

The complete inclined conveyor system will be manufactured in a minimum number of bolted sections to ensure it will fit inside a 40ft container.

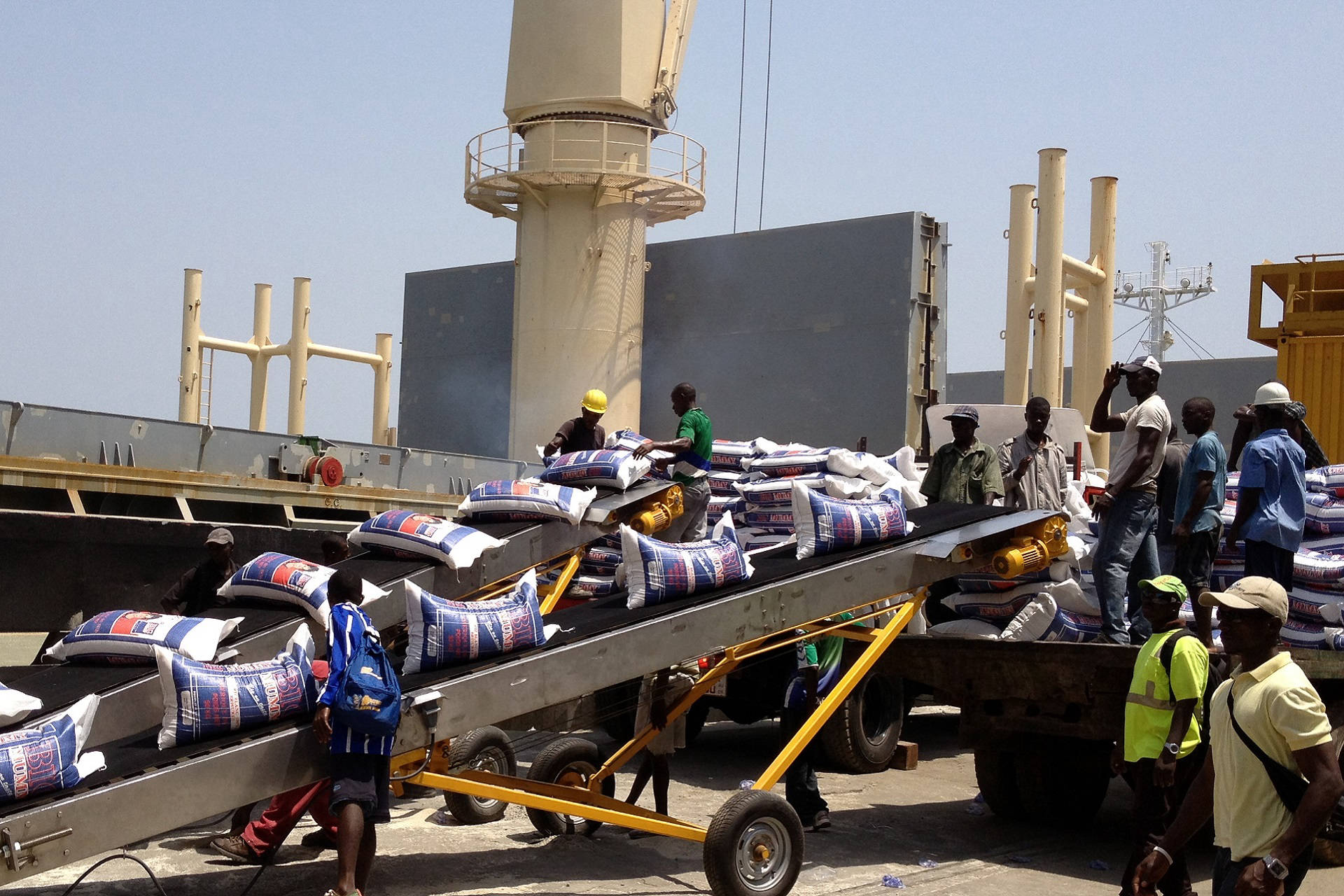

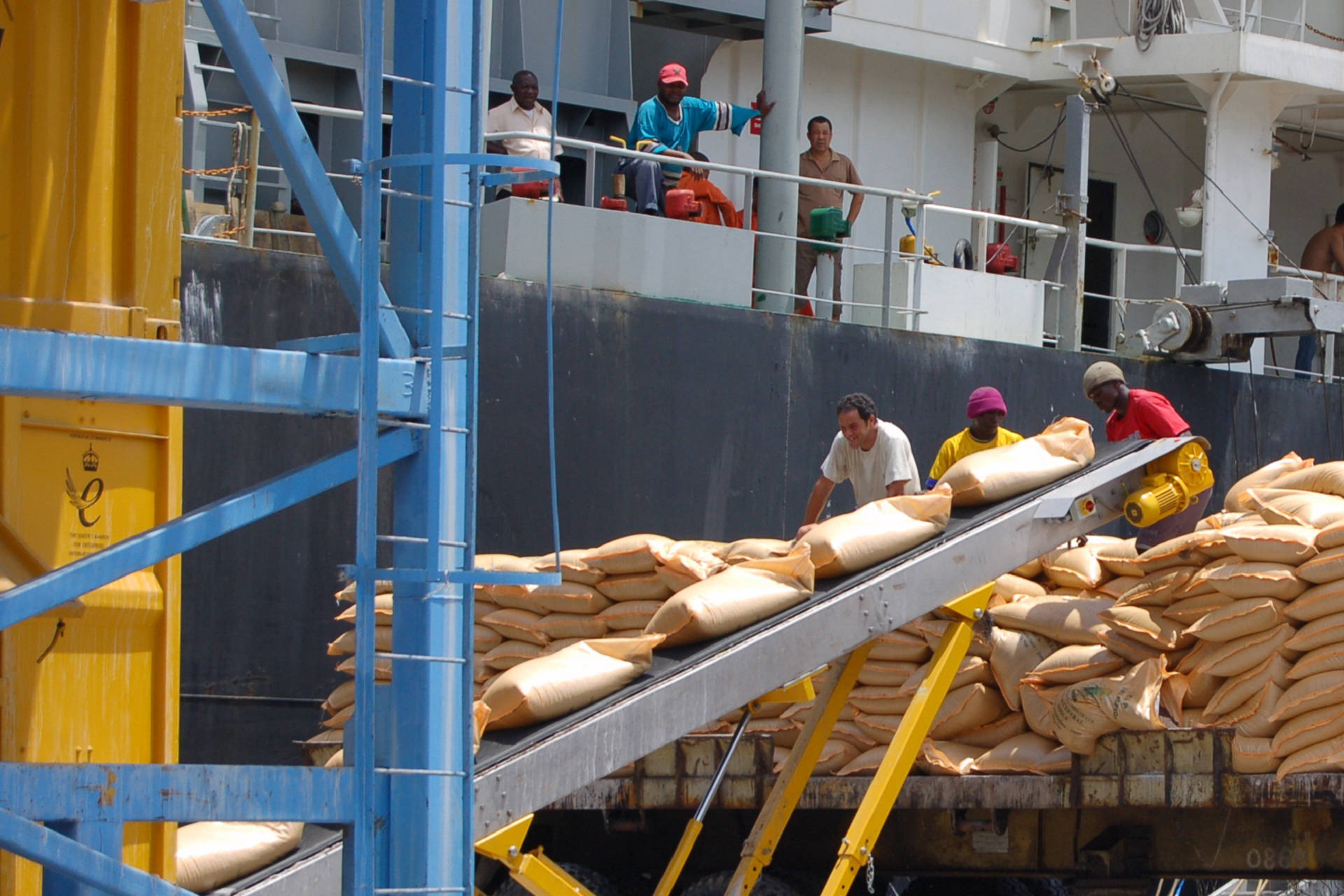

Our Winch type conveyor is a 6500mm drum-centred belt conveyor with a grip-face belt and height adjustment by wire rope pulley system. This is easily done by a manually operated cranking handle. The winch system employed does away with the use of hydraulics to raise and lower the conveyors, thereby significantly reducing maintenance time and cost.

Our Hydraulic type conveyor is a 6500mm drum-centred belt conveyor with a grip-face belt and height adjustment via a hand hydraulic pump. Both Winch and Hydraulic conveyors use head and tail drums of spiral construction to ensure perfect belt tracking and self cleaning of the inside of the belt. The drive drum has grip faced belt riveted to each spiral to provide extra grip for drive.

Our Hydraulic conveyor can also be manufactured as a 8500mm drum-centred belt conveyor.
